Descriere

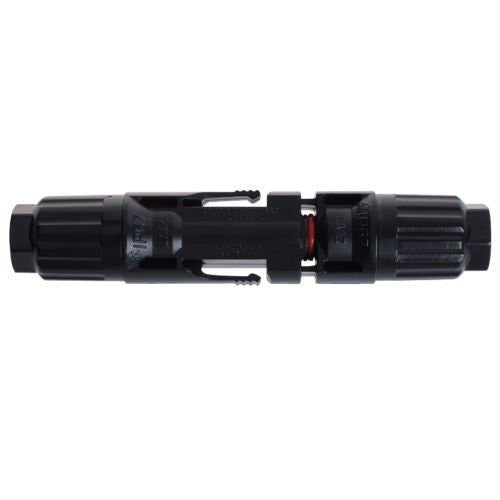

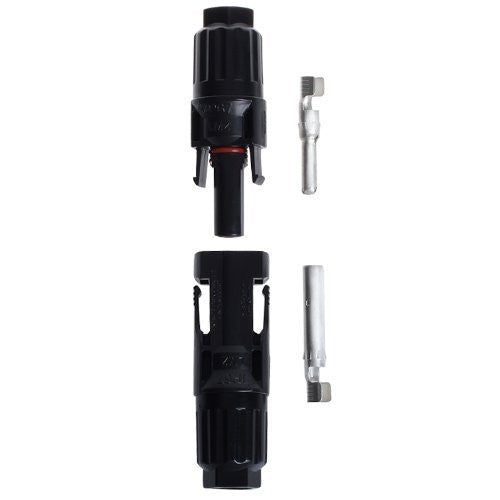

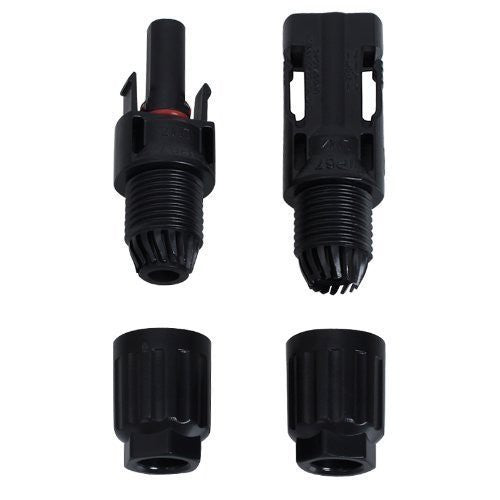

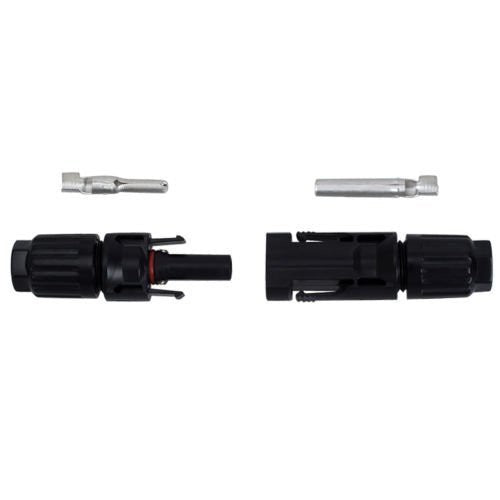

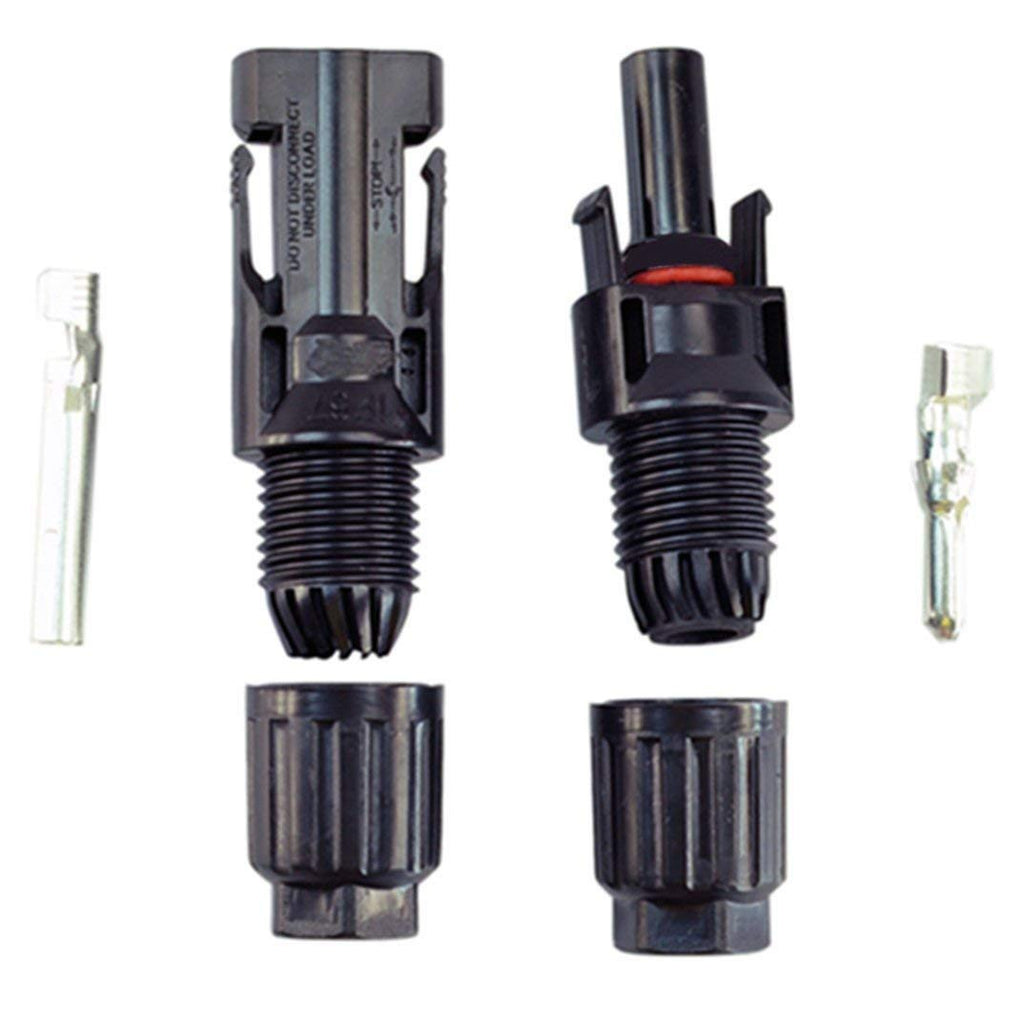

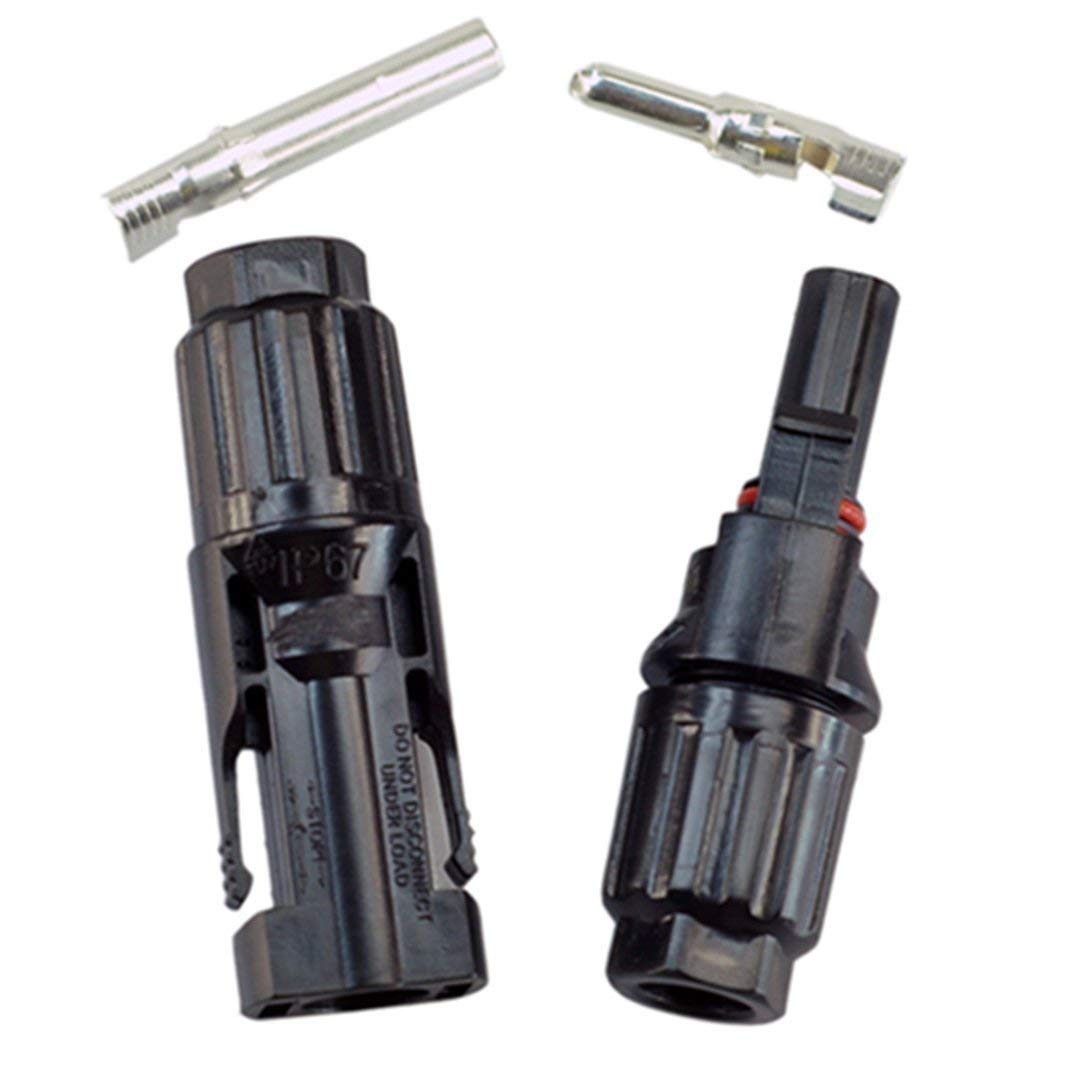

Tip articol: Conector panou solar MC4
Tensiune nominală: 1000 V
Tensiune nominală de impuls: 1000 V
Curent nominal: 24A - 14 AWG (2,5mm⊃2;), 30A - 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)
Tensiune de testare: 6 kV (50 Hz)
Grad de protectie: IP67
Material izolator: PC/PA
Material de contact: cupru, placat cu argint
Temperatura de functionare: -40°C ~ +90°C
Clasa de siguranta: II
Clasa de flacara: UL94-V0
Rezistență de contact: ≤5mΩ
Forța de introducere / retragere: ≤50N / ≥50N
Potrivit pentru cabluri: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)
Sistem de blocare: Snap-in
Data Sheet
Product title

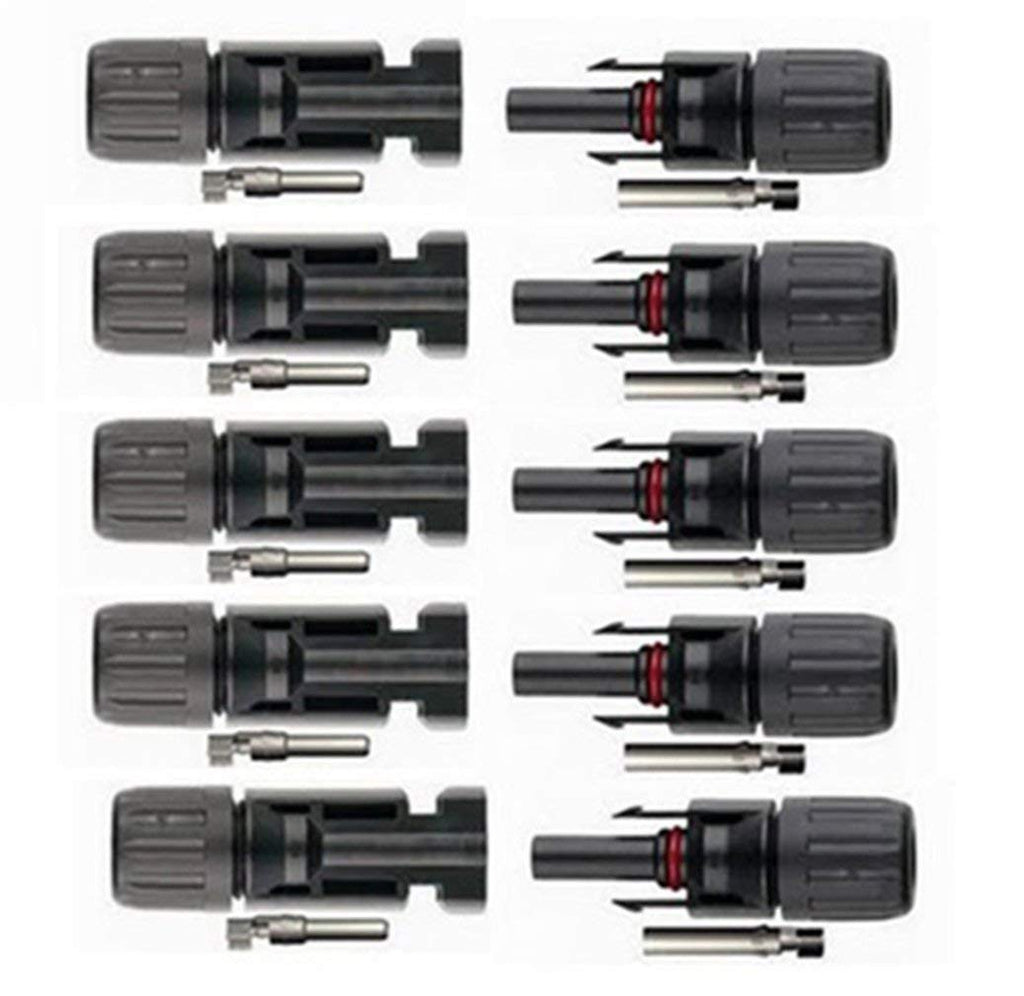

5 perechi MC4 DC Conector Panou Solar tată - mamă 30A 1000V
